Gate Valve
Gate valves vertically partition the path of the fluid using a gated structure, creating a straight-line flow of fluid.
Although these valves keep pressure loss and fluid resistance at a low level, they can only be used for on-off applications.
-
Cast Steel / Forged Steel Carbon Steel.
-
15mm to 500mm
-
Socket weld, butt weld, flanged*
-
2500PSI
-
150# to 3000#
-
Manual (including the type with a manual reduction gear), electric

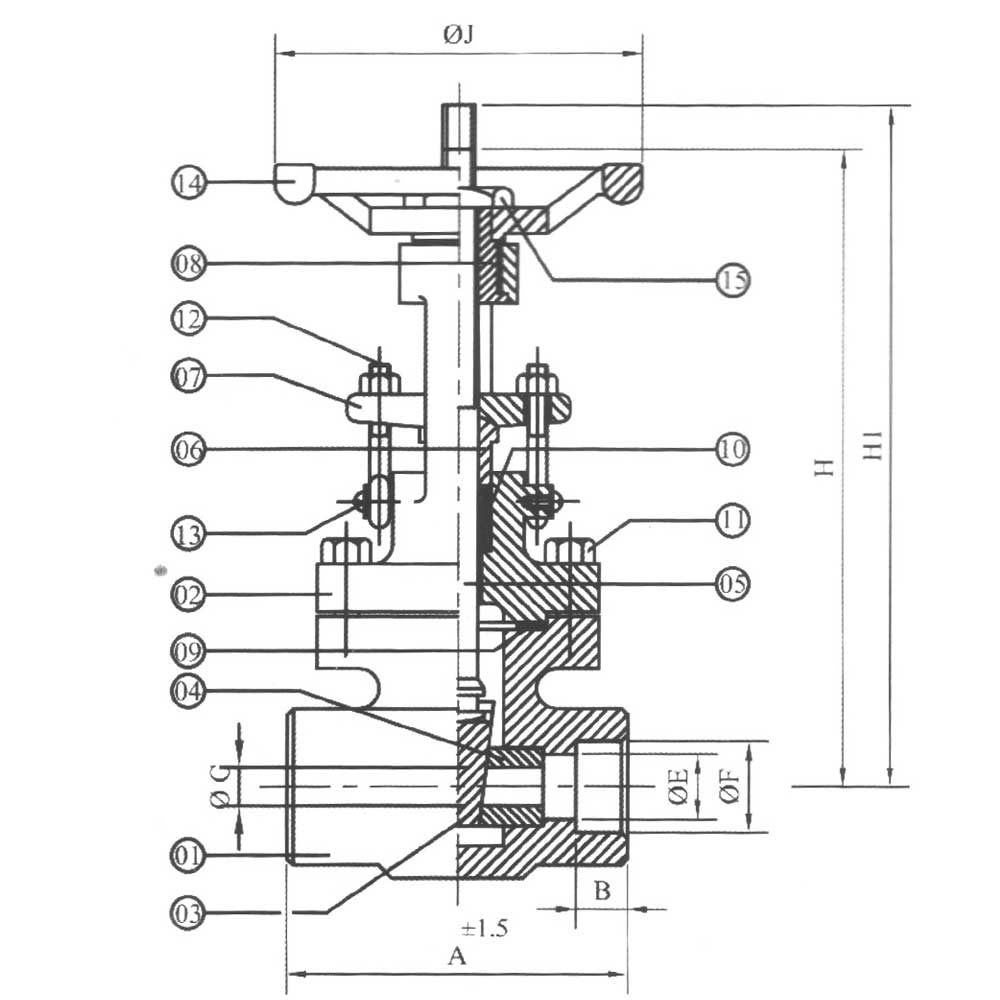

Gate Valve OS and Y
| NO | DESCRIPTION | MATERIAL | QTY. |
|---|---|---|---|
| 1 | BODY | ASTM A 216 Gr. WCB A 351 GR. CF8/AISI 304 A 351 GR. CF8M / AISI 316 |
1 |
| 2 | JACKET | MILD STEEL / AISI 304/316 | 1 |
| 3 | BODY NUT | ASTM A 216 Gr. WCB A 351 GR. CF8/AISI 304 A 351 GR. CFM/AISI 316 |
1 |
| 4 | BODY SEAL | PTFE OR FILLED PTFE | 1 |
| 5 | BALL | AISI 304/AISI 316 | 1 |
| 6 | SEAL | PTFE OR FILLED PTFE | 1 |
| 7 | SEAT SEAL | GLASS FILLED TEFLON | 2 |
| 8 | STEM | AISI 304/AISI 316 | 1 |
| 9 | GLAND PACKING | PTFE OR FILLED PTFE | 2 |
| 10 | GLAND | AISI 304/AISI 316 | 1 |
| 11 | STOPPER PIN | STEEL | 1 |
| 12 | BILLEVILLE SPRING | STEEL | 1 |
| 13 | GLAND NUT | AISI 304/AISI 316 | 1 |
| 14 | LEVER | CARBON STEEL / AISI 304 | 1 |
| 15 | LOCK NUT | STEEL(PLATED) AISI 304 | 1 |
